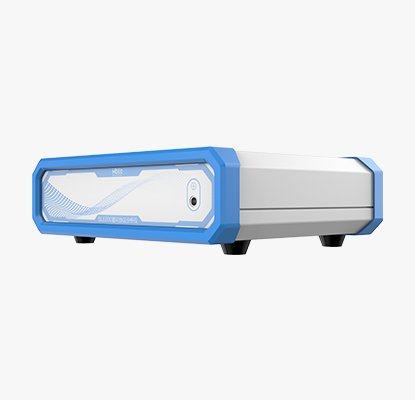

SLE200 supports the capture and parsing of broadcast packets and data link packets for SLE devices, supports the SLE V1.0 protocol, supports 2.4GHz spectrum, supports 1MHz, 2MHz, and 4MHz bandwidth, supports capturing data link packets and broadcast packets over the air, supports storage and saving of original data packet files, supports analysis packet signal RSSI , bandwidth, and data frame type . The equipment is mainly used for auxiliary testing in the development process of SLE products or chips.
Technical Specifications
| Protocol Type | Supports SLE V1.0 |
| Frequency Range | 2400~2483.5MHz |
| Packet Capture Corresponding Protocol Layer | Access Layer |
| Supported Packet Types | Broadcast packets, Link packets. |
| Supported Wireless Frame Types | Supports Wireless Frame Type 1, Wireless Frame Type 2. |
| Data Capture | Supports capture of broadcast packets. |
| Supports capture of link packets from a single link after focusing, starting from link establishment. | |
| Supports long-term data capture. | |
| Supports tracking frequency hopping. | |
| Packet Recognition | Supports recognition and filtering of broadcast packets, link packets, data, and error packets. |
| Data Output | Supports saving original packets in CSV files in the order of capture time. |
| Supports importing original data files into software for data parsing, and saving parsed data in Excel format. | |
| Message Parsing | Supports parsing of non-encrypted message data. |
| Supports parsing of message data captured from link establishment under encrypted conditions with a pre-entered key. | |
| Throughput Testing | Supports graphical display of packet throughput. |
