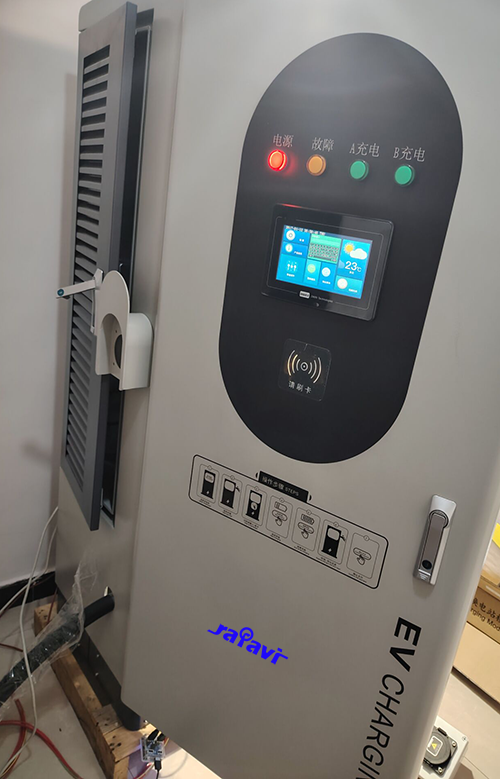

[Rafavi 120KW DC charging pile] is a high-quality product designed to meet the needs of businesses looking to [EV charging station]. This product offers a range of features and benefits that make it an ideal choice for businesses of all sizes.
Features:
High Efficiency
- One EV charger with two outputs, simultaneously charging
- Two CCS2 DC connectors, with output up to 120kW
- Constant power from 300~1000V voltage, less heat with smaller current
Intelligent Control
- Ethernet/4G communication all supported
- OCPP communication protocol
Flexible Option
- App operation or RFID authentication or plug and play
- CCS2 charging cable, optional with GB/T charging cable
Secure and Safe
- Type A RCD for residual current protection
- Over 10 kinds of protection, such as over voltage/under voltage, short-circuit, over current, surge, over temperature,etc.
Benefits:
We have professional R&D teams, accept kinds customization including design,logo,language,power, display interface content layout,Software function,etc.
We believe that Rafavi EV DC charging pile offers an unbeatable combination of quality, performance, and value. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.
Thank you for considering Rafavi. We look forward to the opportunity to work with you and help you achieve success.
Product Parameters
| Model | RD120 |
| Output Power | 120kW |
| Input Voltage | AC380V±15% |
| Input Frequency | 50/60Hz |
| Output Voltage | 200-1000VDC |
| Constant Power Range | 300-1000VDC |
| Charging Gun | Dual Guns with 5m charging cable (length customized available) |
| Communication Plug | 4G/LAN |
| Stable Voltage Accuracy | ≤0.5% |
| Stable Current Accuracy | ≤1% |
| Human Machine Interface | 7-inch color touchscreen |
| Efficiency | ≥97% |
| Power Factor | ≥0.99 |
| Current Sharing Coefficient | ≤5% |
| Harmonic Current | ≤5% |
| Noise | ≤65db |
| Metering Accuracy | 1级 |
| IP Grade | IP54 |
| Standby Power | ≤N*50W |
| Cooling | Fan cooling |
| Electrostatic discharge immunity | Class 4 |
| Surge immunity | Class 4 |
| Working Temperature | -20℃～50℃ |
| Working Humidity | 5%～95% no condensation |
| Altitude | ≤2000M |
| Product Dimension W×D×H | 670MM*560MM*1760MM |
We support EV charging station/EV charger with different power according to customer requirements.
